Cold Rolled Bright Surface SS 321 Plate High Temperature Resistance Stainless Steel Sheet

Certification : AISI

MOQ : 50

Price : 1.85

Model NO. : 321

Shape : Flat

Technique : Cold Rolled

Surface Treatment : Bright

Specification : 1220*2440, 1500*3000, 1500*6000, 2000*6000mm

Thickness : 0.1 to 100 mm Thk

Width : 10-2500mm

Length : 2m, 2.44m, 3m, or as required

Finish : SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc.

Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard

Carbon Content : 0.08

Chromium Content : 17.0-19.0

Nickel Content : 9.0-12.0

Yield Strength : 30 ksi

Tensile Strength : 75 ksi

Contact Now

S32168 Stainless Steel Plate Hot Rolled SS 321 Plate
Grade 321 / 321H Stainless Steel Sheet UNS S32100 is a titanium-stabilized austenitic stainless steel designed for high-temperature service in the 1000-1600°F range. This grade offers excellent resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
Product Overview
321 stainless steel is readily welded by all common methods including submerged arc welding. Appropriate weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, it offers similar machinability to 304 stainless steel.
Available Forms: Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal
Specifications & Dimensions
Standards & Certifications
  • Grade 321/321H
  • ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
  • EN 10088/2, EN 10088/4 and CE Marking
  • NACE MR 0175/ISO 15156 Certification
Product Type 321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification ASTM A240 / ASME SA240
Tolerances EN 10258/ DIN 59381
International Standards ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510
Dimension Ranges
Width 600mm - 2030mm
Thickness 0.1mm - 120.0mm
Length 300mm - 6000mm (Max 18000mm)
Available Finishes
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing
Applications
  • Aircraft piston engine manifolds
  • Expansion joints
  • Firearms production
  • Thermal oxidizers
  • Refinery equipment
  • High temperature chemical process equipment
Equivalent Grades
AISI 321 equivalents include multiple international standards and specifications:
Standard Equivalent Designations
ASTM A182 F321, A193 B8T, A240 S32100, A312 TP321, A376 TP321, and numerous others
JIS SUS321, SUS321TPY, SUS321TP, SUS321TF, SUS321TB
EN X6CrNiTi18-10, 1.4541
GOST 06Ch18N10T, 08X18H10T, 12X18H10T
Other UNS S32100, DIN 1.4541, GB 0Cr18Ni11Ti, AFNOR Z6CNT18-10
Technical Data
Chemical Composition (wt%)
Element 321
Carbon 0.08
Chromium 17.0-19.0
Nickel 9.0-12.0
Manganese 2.00
Silicon 0.75
Nitrogen 0.10
Phosphorus 0.045
Sulfur 0.030
Titanium 5(C+N) min / 0.70 max
Mechanical Properties
Property 321
Yield Strength, min. (ksi) 30
Tensile Strength, min. (ksi) 75
Elongation, min. (%) 40
Hardness, max. (Rb) 95
Physical Properties
Property 321 Data
Density, lb/in³ 0.286
Modulus of Elasticity, psi 28.0 x 10⁶
Coefficient of Thermal Expansion, 68-212˚F, /˚F 9.2 x 10⁻⁶
Thermal Conductivity, Btu/ft hr ˚F 9.3
Specific Heat, Btu/lb ˚F 0.12
Electrical Resistivity, Microohm-in 28.4
Grade Specification Comparison
Grade UNS No Old British Euronorm Swedish SS Japanese JIS
321 S32100 321S31 1.4541 2337 SUS 321
321H S32109 321S51 1.4878 - SUS 321H
347 S34700 347S31 1.4550 2338 SUS 347
Alternative Grades
Grade Alternative Application
304L When resistance to intergranular corrosion is required without high-temperature strength needs
3CR12 For mild high-temperature environments up to approximately 600°C
304H For mild high-temperature environments up to approximately 800°C
310 For operating environments up to approximately 1100°C
S30815 (253MA) For operating environments up to approximately 1150°C
Cold Rolled Bright Surface SS 321 Plate High Temperature Resistance Stainless Steel Sheet Cold Rolled Bright Surface SS 321 Plate High Temperature Resistance Stainless Steel Sheet

Product Tags:

Cold Rolled SS 321 Plate



Bright Surface Stainless Steel Plate



High Temperature Resistance 321 Stainless Steel Sheet


Quality Cold Rolled Bright Surface SS 321 Plate High Temperature Resistance Stainless Steel Sheet for sale

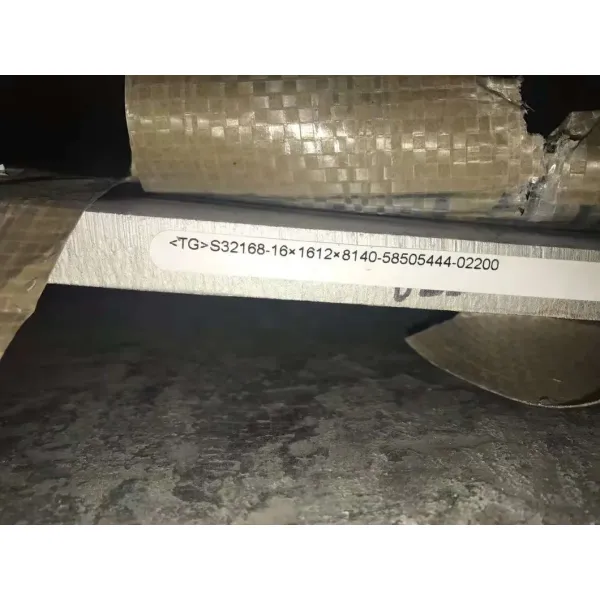

Cold Rolled Bright Surface SS 321 Plate High Temperature Resistance Stainless Steel Sheet Images
