Hot Rolled UNS N08904 DIN1.4539 X1NiCrMoCu25-20-5 Stainless Steel Plate 10MM SS 904L Plate
ASTM SAE AISI 904L Stainless Steel (UNS N08904)
AISI 904L stainless steel (UNS N08904) is a high alloy austenitic stainless steel. Compared with 316L, SS904L has lower carbon (C) content, higher chromium (Cr) content, and approximatively twice the nickel (Ni) and molybdenum (Mo) content of 316L, which makes it have higher high temperature oxidation resistance, pitting resistance, and resistance to reducing acid (eg, sulfuric acid). Nitrogen (N) can reduce the rate of chromium carbide precipitation, thereby reducing the sensitivity of sensitization, it also improve the resistance to pitting and crevice corrosion caused by chlorides. Especially its addition of copper (Cu) makes it useful for all concentrations of sulfuric acid.
Datasheet and Specification
The following data sheet summarizes the chemical composition, properties, heat treatment and equivalent
grade of 904L stainless steel (SS904L).
Chemical Composition
The following data sheet gives SS 904L stainless steel chemical composition.
| | | | Chemical Composition, % |
| ASTM | UNS | Type | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo | N, ≤ | Cu | Notes (Product) |
| ASTM A276/A276M | UNS S08904 | 904L | 0.02 | 1.00 | 2.00 | 0.045 | 0.030 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 0.10 | 1.0-2.0 | Bars and Shapes |
| ASTM A240/A240M | Plate, Sheet, and Strip |
Mechanical Properties
The following table lists 904L stainless steel (SS904L) mechanical properties such as yield strength,
tensile strength, elongation and hardness.
| | | AISI ASTM 904L Steel Mechanical Properties |
| ASTM | AISI Type | Tensile Strength, MPa (ksi), ≥ | 0.2% Yield Strength, MPa (ksi), ≥ | Elongation in 50 mm (2 in.), %, ≥ | Rockwell Hardness (HRBW), ≤ | Product forms | Conditions |
| ASTM A276/A276M | 904L (UNS N08904) | 490 (71) | 220 (31) | 35 | – | Bars and Shapes | Annealed, Hot-finished or cold-finished |
| ASTM A240/A240M | 490 (71) | 220 (31) | 35 | 90 | Plate, Sheet, and Strip | |
Heat Treatment
Annealing: The recommended annealing temperatures for 904L wrought steel is 1095 °C (2000 °F).
Corrosion
Type 304 stainless steel can handle mild foods and vegetables, but sauces and pickle liquors are more corrosive
and can even cause pitting corrosion on type 316 stainless steel. In order to improve pitting resistance,
high alloy 904L stainless steel (SS904L) should be considered.
Applications
904L stainless steel (SS904L) is used in petroleum, chemical, fertilizer, marine development towers, tanks,
pipes and tubes and heat exchangers.
SS 904L Equivalent Grade
The datasheet below summarizes 904L stainless steel equivalent grade such as European EN
(German DIN EN, British BS EN, French NF EN…), Chinese GB, ISO, Japanese JIS standard.
| AISI 904L equivalent material |
| US | European Union | ISO | Japan | China |
| Standard | Type | Standard | Grade (Steel Number) | Standard | ISO Name (ISO Number) | Standard | Grade | Standard |
| AISI SAE; ASTM | 904L (UNS N08904) | EN 10088-2; EN 10088-3 | X1NiCrMoCu25-20-5 (1.4539) | ISO 15510 | X1NiCrMoCu25-20-5 (4539-089-04-I) | JIS G4303 | SUS 890L | GB/T 20878; GB/T 4237; GB/T 3280 |
Applications of Stainless Steel 904L Plates
The primary use for 904L plates is in demanding, corrosive environments where standard stainless steel grades are inadequate, leveraging the strength of the UNS N08904 grade.
- Process Equipment in the chemical industry and petrochemical industry.
- Bleaching equipment and bleaching tanks in the pulp and paper industry.
- Combustion gas desulphurisation plants and flue gas cleaning equipment.
- Handling of sulphuric and phosphoric acid.
- Seawater handling, desalination plants, and general marine environment use.
- Oil refinery components and chemical plants.
- Hydrometallurgy.
- Equipment for the food and beverage and pharmaceuticals industries.
FAQ
Q: What's your minimum order quantity?
A: Our minimun quantity is 500 Kg. We also can offer you samples.
Q: What's your delivery time?
A: Our normal delivery time is 7-20 days, and it depends on your quantity and items. Of course, if you need products urgently, we also will consider arranging it firstly.
Q: What's the price of your product?
A: Our prices are based on the material grade, size, quantity and physical performance etc. So if you can offer us the detailed information, then we can give you the best reasonable price. Also, we can do special size and color for customers.
Q: What's your after-sales service?
A: We have two ways to handle claims by replacement and deduction. Of course, if the materialis not good used by wrong parameter from customer, we won't be responsible.
Q: Why do you think I will want to buy from you?
A: We have advantages with 22 years of professional experiences in manufacturing & designing, advanced technology & the first-class equipment, perfect logistics management, high-quality after-sales service and competitive price.
|
|

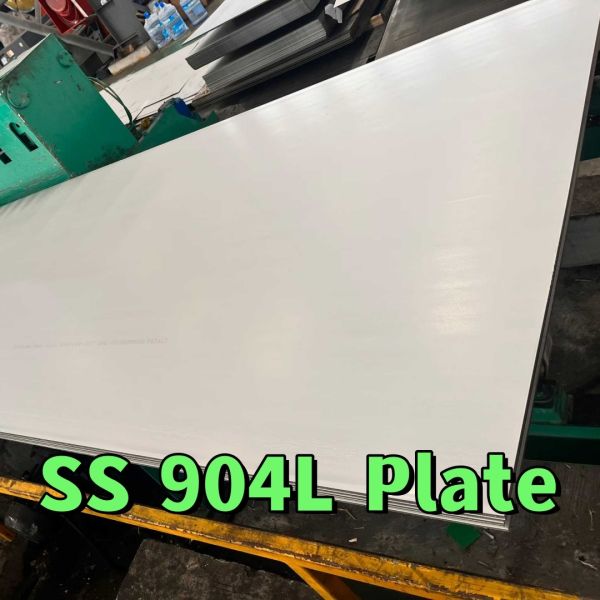

Hot Rolled UNS N08904 DIN1.4539 X1NiCrMoCu25-20-5 Stainless Steel Plate 10MM SS 904L Plate Images
|
